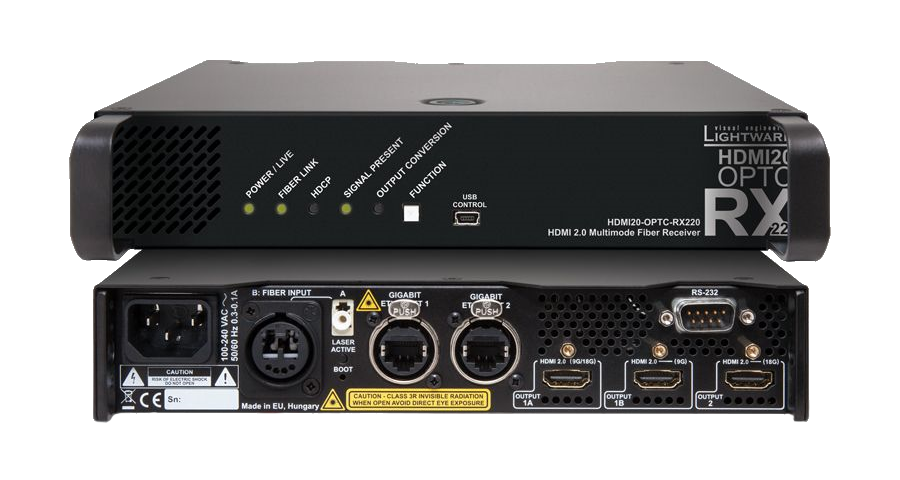

HDMI20-OPTC-RX220-Pro

The HDMI20-OPTC-TX/RX220-Pro is a HDMI 2.0 compatible, HDCP 2.2 compliant extender pair for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. This extender pair is particularly recommended for rental and staging applications, 4K live events, and for future-proof operation centers. The extender can transmit HDMI 2.0 signals with 18Gbps over one multimode fiber to a distance of up to 700 meters. Video and Ethernet signals are transferred over a single optical line.

Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on the HDMI connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent RS-232 transmission and two separate Gigabit Ethernet signals over the fiber connection.

All devices can be mounted on a rack shelf or used standalone, rack ears also serve easy handling and bump protection, mounting threads on top and one of the sides to conform strict installation safety regulations.

The device features Pixel Accurate Reclocking, a Lightware technology to eliminate jitter and skew generated by low quality sources and multiple daisychained devices. Single fiber technology makes these units fully HDMI compliant without need of a second fiber cable or copper connections.

Galvanic isolation between source and display helps avoiding ground loops and hum effects. No delay occurs in the signal during optical conversion, the video image is transported without frame latency. This feature is crucial in 3D applications and systems where audio is processed separately.

Lightware’s HDMI20-OPTC series supports both HDR and Dolby Vision in the HDMI signal at 10 or 12 bit speeds respectively, within its frame bandwidth of 18 Gbps maximum.


Features

  • Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
  • Single Fiber Technology
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • Built-in universal power supply
  • Built-in Event Manager automation feature
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
  • HDCP 2.2 compliant (transparent pass-through)
  • Bi-directional RS-232 extension (pass-through and control)
  • No signal latency, zero frame delay
  • Single Fiber Technology
  • Dual output with built-in distribution amplifier
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Firmware upgrade through Ethernet
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 2500 meters (with OM3 fiber, 1920x1080p60)
  • Color subsampling option on outputs (4:4:4 to 4:2:0 downconversion)
  • Advanced EDID Management
  • Advanced EDID Management in transmitter
  • Command injection on RS-232 and IR ports
  • Multiple TCP/IP connections
  • Intuitive control software for device configuration
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • HDR and Dolby Vision support
  • No video compression
  • Splitting of 4K UHD at 60Hz to two output ports with left and right half of the original video
  • Built-in universal power supply
  • Directly mountable in 19" rack
  • Breakout LC connector for Neutrik OpticalCON Duo unused fiber channel
  • EtherCON ruggedized LAN connector
  • Active fan cooling
  • Front to back cooling airflow
