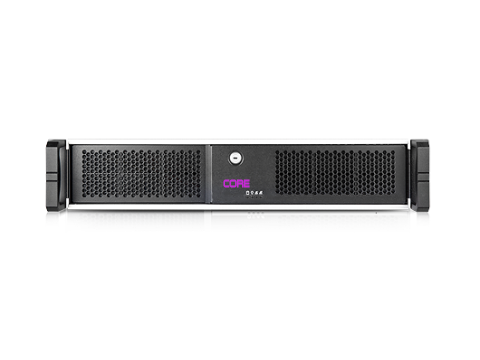

DVS 2U CORE SERVER

The DVS 2U CORE is an entry level control and production server. The intel-based processors options allow up to 14 cores with 28 threads for demanding single and multi-threaded workloads. The NVMe M.2 slots allow for blistering fast storage options, and the two 2.5” and two 3.5” drive bays allow for higher capacity and RAID options for storage.


Specifications

  •     DVS 2U Rackmount Chassis - 457.2 x 430 x 88.1 (mm) (D x W x H)
  •     500-650 Watt PSU
  •     Intel W680 Chipset Motherboard
  •     Intel Processor 4(8), 6(12) or 14(28) Core
  •     16 / 32 / 64GB 5200 DDR5 Dual Channel Memory
  •     3 x NVMe M.2 Storage ( Up to 8TB )
  •     2 x 2.5” SATA Storage ( Supports RAID 0 and RAID 1 )
  •     2 x 3.5” SATA Storage (Supports RAID 0 and RAID 1 )
  •     2 x 2.5Gb Network Ports
  •     Operating System - Windows 10 Enterprise IoT LTSC 2021, Windows 11 Enterprise IoT LTSC 2024, Windows 10 Pro or Windows 11 Pro


    Graphics
    CR-G2-A20-ADD NVidia A2000 GPU
    CR-G2-T10-ADD NVidia T1000 GPU

    Network
    CR-G2-10G-ADD Addtional 10G Newtwork Interface Module

    Storage
    CR-G2-1TB-ADD Additional asset storage capacity to 1TB
    CR-G2-2TB-ADD Additional asset storage capacity to 2TB
    CR-G2-4TB-ADD Additional asset storage capacity to 4TB
    CR-G2-8TB-ADD Additional asset storage capacity to 8TB
