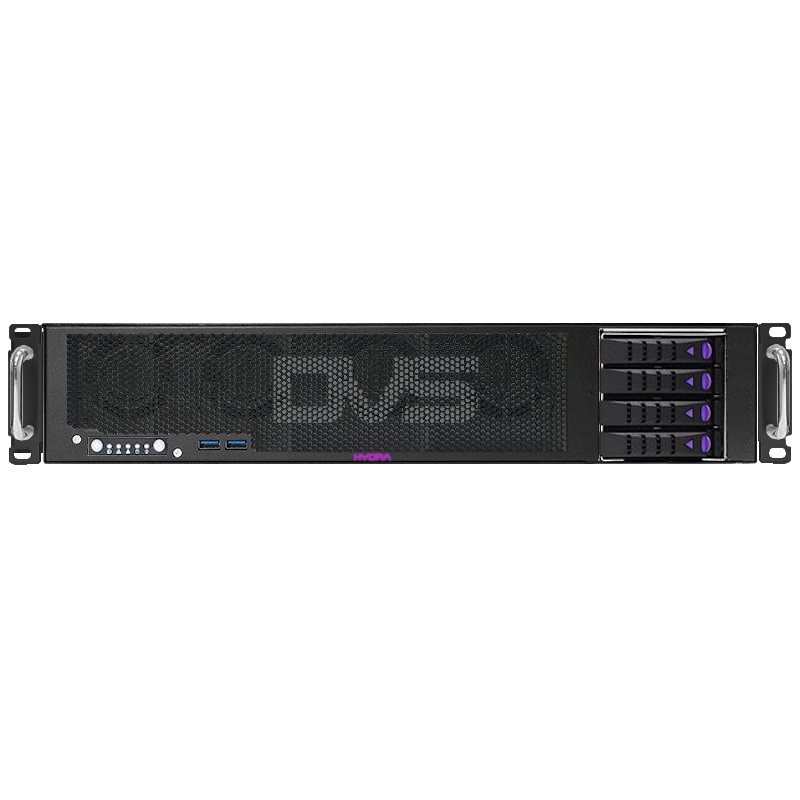

DVS 2U HYDRA GEN2 Media Server
The DVS 2U HYDRA GEN2 Media Server is our workhorse, an excellent starting point for any media server application. Designed to deliver outstanding multi-layered 2D content or custom interactives, the HYDRA GEN2 is a perfect choice for multiple projector configurations and driving LED.
This server provides the functionality and reliability expected in all professional environments, with the benefit of being software agnostic, and highly modular. Allowing you to add additional graphics devices, storage or capture inputs to tailor this server to your specific requirements, without compromising on a professional, robust hardware platform.
The DVS 2U HYDRA GEN 2 Media Server is a four output media server utilising workstation grade hardware to deliver outstanding performance balanced with reliability. Whether using your own custom application / content, or running a third-party render or media server engine this platform has plenty of overhead.
The professional graphics card gives great performance as well as additional features such as EDID emulation, supplying an extra level of reliability. With the addition of a sync module, the server can frame lock between multiple units, or Genlock to an external source.
Each output on the server can run up to 8k@60Hz RGB, although the frame-rate of the final output is software / content dependent.
Specifications
- DVS 2U HYDRA Rackmount Chassis - 450 x 438 x 88mm (D x W x H)
- 6 Core, 12 Thread Xeon Processor
- 64GB DDR5 Quad Channel ECC Memory
- NVIDIA 4000ADA Graphics Card ( Up to 4 concurrent displays )
- NVMe Boot Drive
- 1TB of NVMe Asset Storage
- 1 x Gigabit Network, 1 x 10 Gigabit Network Ports
- Operating System - Windows Enterprise IoT LTSC
Upgrade Options
| Core | |
| HY-G2-2U-8C | 8 Core Processor Upgrade |
| HY-G2-2U-12C | 12 Core Processor Upgrade |
| HY-G2-2U-16C | 16 Core Processor Upgrade |
| HY-G2-2U-24C | 24 Core Processor Upgrade |
| HY-G2-M128G | Upgrade to 128GB of 4 Channel DDR5 ECC Memory |
| HY-G2-2U-RPSU | 1+1 Redundant PSU Upgrade for 2U |
| Graphics | |
| HY-G2-SYNC | Add a sync module to support frame-lock and genlock |
| HY-G2-GUI | Additional GUI graphics card for local show setup and running |
| Storage | |
| HY-G2-M2T | Increase asset storage capacity to 2TB |
| HY-G2-M4T | Increase asset storage capacity to 4TB |
| HY-G2-M1TG5 | Change asset storage from Gen 4 to Gen 5 NVMe |
| HY-G2-M2TG5 | Increase asset storage capacity to 2TB and from Gen 4 to Gen 5 NVMe |
| HY-G2-M4TG5 | Increase asset storage capacity to 4TB and from Gen 4 to Gen 5 NVMe |
| Capture | |
| HY-G2-4C12GSDI | Eight Input / Output, four 12G SDI or eight 3G SDI Capture Card |
| HY-G2-1C4KHDMI-4C3GSDI | Four 3G SDI or one HDMI 2.0 Capture Card |
| HY-G2-2C4KHDMI | Two HDMI 2.0 Capture Card |
| HY-G2-2U-4C12GSDIB | Four 12G SDI Capture Card (Blackmagic) |
| HY-G2-2U-4C3GSDIB | Four 3G SDI Capture Card (Blackmagic) |
| Network | |
| HY-G2-2N10G-RJ45 | Two 10g RJ45 network ports |
| HY-G2-2N25G-SFP28 | Two 25g SFP28 network ports |
| HY-G2-2N40G-SFP+ | Two 40g SFP+ network ports |
| Chassis | |
| HY-G2-2U-RRK | Rack rail kit for 2U |
| Not all upgrade combinations available |
